• Veolia MK-5 EDI Module (Previously E-CELL-3X) Premium Ultra-Pure Water Solution for the Medical Industry
  • Veolia MK-5 EDI Module (Previously E-CELL-3X) Premium Ultra-Pure Water Solution for the Medical Industry
  • Veolia MK-5 EDI Module (Previously E-CELL-3X) Premium Ultra-Pure Water Solution for the Medical Industry
Veolia MK-5 EDI Module (Previously E-CELL-3X) Premium Ultra-Pure Water Solution for the Medical Industry

Veolia MK-5 EDI Module (Previously E-CELL-3X) Premium Ultra-Pure Water Solution for the Medical Industry

Datos del producto:

Lugar de origen: PORCELANA
Nombre de la marca: VEOLIA
Certificación: CE
Número de modelo: Mk-5

Pago y Envío Términos:

Cantidad de orden mínima: 1 PC
Precio: Negociable
Detalles de empaquetado: Embalaje de exportación estándar
Condiciones de pago: T/T
Capacidad de la fuente: 60000 unidades por mes
Mejor precio Contacto

Información detallada
Resaltar:

Veolia MK-5 EDI module medical industry

,

EDI module ultra-pure water solution

,

Veolia E-CELL-3X replacement water module

Descripción de producto

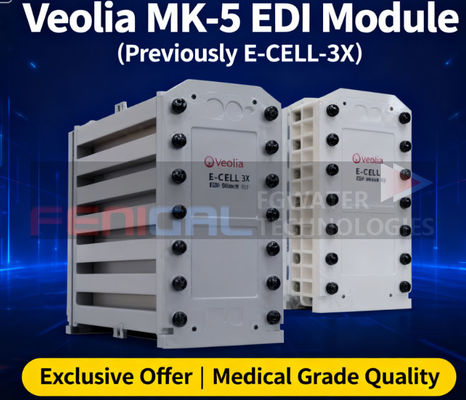

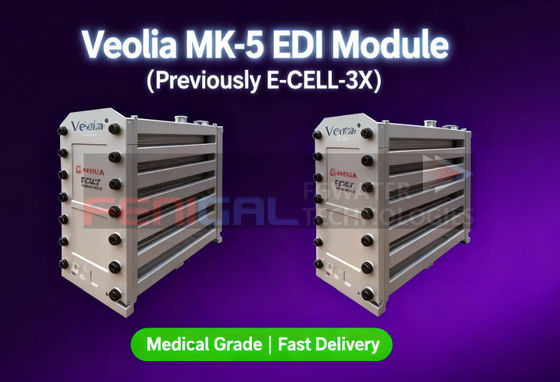

The Veolia MK-5 EDI Module (Previously E-CELL-3X) stands as a game-changing electrodeionization (EDI) system, tailor-made to meet the strict ultra-pure water demands of the medical industry. As an upgraded successor to the trusted E-CELL-3X, this module merges Veolia’s decades of water treatment expertise with advanced technology, delivering consistent, chemical-free purification—critical for safeguarding patient safety and medical process integrity.

Core Technology & Process

At its core, the Veolia MK-5 EDI Module (Previously E-CELL-3X) uses a synergistic combination of ion-exchange resins and selective membranes, powered by a low-voltage direct current (DC) field. Unlike traditional mixed-bed ion exchange systems that rely on harsh acids/caustics for regeneration, this EDI module operates continuously: feedwater flows through dilute channels, where ions are pulled into concentrate channels via the electric field—eliminating chemical waste and reducing operational risks. It supports both counter-current (4.1–6.9 bar inlet pressure) and co-current (3.1–6.9 bar inlet pressure) operations, ensuring flexibility for diverse medical facility setups.

Medical Industry Applications

In healthcare settings, the module is indispensable for:
  • Pharmaceutical manufacturing: Producing USP/EP-compliant purified water for drug formulation, API synthesis, and sterile injectables.
  • Medical device processing: Supplying pyrogen-free water for cleaning and sterilizing surgical instruments, endoscopes, and implantable devices.
  • Clinical laboratories: Delivering water with ≤5 ppb silica and ≥16 MΩ·cm resistivity for diagnostic testing, PCR, and histology applications.

Specifications Table

Parameter Value
Nominal Flow Rate 5.0 m³/h (22 GPM)
Flow Range 2.3–6.4 m³/h (10–28 GPM)
Recovery Rate Up to 97%
Voltage (VDC) 0–400
Amperage (ADC) 0–5.2
Certifications CE, RoHS, ISO 9001/14001
Operating Temperature 4.4–40°C (40–104°F)

Key Advantages

  • Chemical-Free Operation: Eliminates acid/caustic handling, cutting safety hazards and waste disposal costs.
  • Consistent Purity: Guarantees ultra-pure water quality, reducing risks of medical product contamination.
  • Energy Efficiency: Patented resin configuration lowers power use vs. traditional systems, aligning with sustainability goals.
  • Reliable Performance: Hot-water sanitization capability and robust construction support 24/7 medical facility operations.
For medical businesses prioritizing compliance, safety, and efficiency, the Veolia MK-5 EDI Module (Previously E-CELL-3X) is the gold standard for ultra-pure water solutions.
Veolia MK-5 EDI Module (Previously E-CELL-3X) Premium Ultra-Pure Water Solution for the Medical Industry 0

etiqueta:

Modulo de membrana EDI de 3000 L/h

Modulo de membrana EDI industrial de 5000 L/h

Modulo de membrana EDI de la serie LCM
