DHP 2.7 Axial Piston Pump (2.7m³/h, 80Bar) – High-Pressure Water Treatment Consumables for Desalination

DHP 2.7 Axial Piston Pump (2.7m³/h, 80Bar) – High-Pressure Water Treatment Consumables for Desalination

Datos del producto:

Lugar de origen: Porcelana
Nombre de la marca: Fenigal
Certificación: CE
Número de modelo: DHP 2.7

Pago y Envío Términos:

Cantidad de orden mínima: 1 PC
Precio: Negociable
Detalles de empaquetado: Embalaje de exportación estándar
Capacidad de la fuente: 60000 unidades por mes
Mejor precio Contacto

Información detallada
Modelo de producto: DHP 2.7 Desplazamiento geométrico: 15 cm³/rev
Flujo nominal a velocidad nominal (3000 rpm): 2.7 m³/h (convertido a 45 l/min en caudal de minuto) Presión de salida mínima: 20 bares
Presión de salida continua máxima: 80 bares Presión mínima de entrada: 1 barra
Presión de entrada continua máxima: BARRA 5 Gama de velocidad continua: 700 ～ 3450 rpm

Descripción de producto

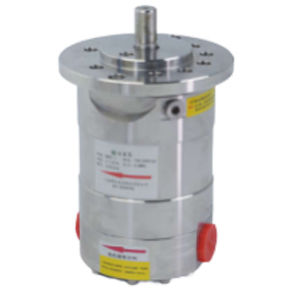

As a key model in the DHP series, the DHP 2.7 Axial Piston Pump is a professional high-pressure Water Treatment Consumable, engineered for transporting high-pressure, low-viscosity corrosive fluids. It’s widely applied in industrial reverse osmosis scenarios—including seawater desalination and industrial desalination—effortlessly conveying media like seawater and industrial saline wastewater.


Operating on the axial piston principle, the pump uses plungers (parallel to the drive shaft) reciprocating in plunger bores to change cavity volume and transfer fluid. Unlike traditional piston pumps, it eliminates the need for a lubricating oil tank, instead using the conveyed fluid as lubrication. This design fundamentally prevents oil leakage pollution, perfectly suiting the high cleanliness demands of seawater and industrial wastewater treatment. It also boasts a compact structure (smaller and lighter than peers with the same flow/pressure), high operating efficiency, and low energy consumption—effectively cutting long-term operating costs for desalination systems.


Crafted with 2205 duplex stainless steel for key components, the pump offers strong corrosion resistance to high-salinity media. It runs quietly (≤77 dB(A) per EN ISO 3744-2010) and stably. As a fixed-displacement pump, its flow rate is strictly proportional to speed at 80 Bar working pressure: at 1000 rpm, flow is ~0.9 m³/h; at the rated 3000 rpm, it reaches 2.7 m³/h (45 L/min). For custom flow needs, use the formula Selected Motor Speed = (Required Flow Rate × 3000)/2.7—e.g., 2.0 m³/h requires ~2222 rpm, ensuring precise system matching.


To ensure safe operation, follow strict installation and operation rules:


  • Installation: Clearly identify "I" (inlet) and "O" (outlet) to avoid reverse-connection failure; reserve 3-5 mm gap between pump and motor coupling, and never let the pump shaft bear axial/radial loads.
  • Filtration: Install a 10 μm absolute filter (≥99.98% efficiency, β10>5000) at the inlet—use precision depth filters, not low-efficiency bag/spiral wound filters—to protect internal components.
  • Pressure Protection: Add a 1 Bar low-pressure switch (prevents idling) at the inlet, and a 70 Bar high-pressure switch + safety valve at the outlet (avoids pipeline/membrane overpressure damage).
  • Shutdown Flushing: Flush the cavity with fresh water after each shutdown (bactericide for >15-day shutdowns) to prevent salt crystallization; never start with the rear valve closed.


Power varies by pressure: 7.5 kW at 60-70 Bar, 11 kW at 80 Bar (recommended for seawater desalination, which operates at 70-80 Bar). The pump includes a 1-year basic warranty (excludes man-made/non-compliant damage) and an 8000-hour maintenance-free warranty (max 18 months) under standard use. WUXI FENIGAL SCIENCE AND TECHNOLOGY CO., LTD. provides fault detection, on-site maintenance, and spare parts to keep water treatment systems running smoothly.

Core Technical Parameters of DHP 2.7

Parameter Category Specific Value
Product Model DHP 2.7
Geometric Displacement 15 cm³/rev
Rated Flow (3000 rpm) 2.7 m³/h (45 L/min)
Minimum Outlet Pressure 20 Bar
Maximum Continuous Outlet Pressure 80 Bar
Minimum/Maximum Inlet Pressure 1 Bar / 5 Bar
Continuous Operating Speed Range 700～3450 rpm
Operating Noise (EN ISO 3744-2010) ≤77 dB(A)
Power (3000 rpm) 7.5 kW (60/70 Bar), 11 kW (80 Bar)
Medium Temperature 2～50 ℃ (depends on NaCl concentration)
Ambient Temperature 0～50 ℃
Overall Weight 7.8 kg
Integrated Component Flushing Check Valve
Core Application Seawater desalination, industrial wastewater desalination/resource recovery

Inlet & Outlet Dimensions of DHP 2.7

Pump Model Inlet Size Outlet Size
DHP 2.7 G3/4〞, Depth 18 mm G3/4〞, Depth 18 mm

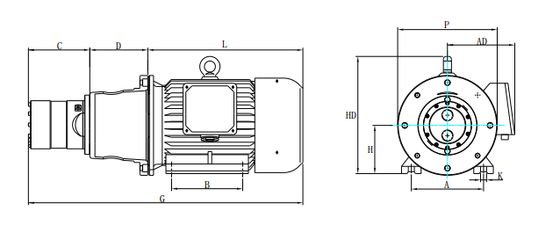

Overall Dimensions of DHP 2.7 (Unit: mm)

Pump Model A B H K P AD HD Matching IEC Motor
DHP 2.7 216 140 132 12 300 220 350 7.5 kW - 2P
DHP 2.7 254 210 160 12 350 260 420 11 kW - 2P
