Dupont™AmberLite™ IRN160 H/OH For Water Treatment In The Nuclear Power Industry
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | Dupont |
| Certificación: | ISO9001 |
| Número de modelo: | DuPont ™ Amberlite ™ IRN160 H/OH |
| Documento: | IER-AmberLite-IRN160-H-OH-P...en.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 por ciento |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Embalaje de exportación estándar |
| Tiempo de entrega: | 5- 8 días de trabajo |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 60000 unidades por mes |
|
Información detallada |
|||
| IRN97 H Copolímero de resina de catión: | Estireno-divinilbenceno | IRN97 H Cation Resina Matriz: | Gel |
|---|---|---|---|
| IRN97 H Cation Resin Forma física: | Cuentas esféricas translúcidas ámbar | Aplicaciones principales: | Tratamiento de agua en la industria de la energía nuclear |
| IRN97 H Diámetro de partículas de resina de catión: | 525 ± 50 μm | Peso de envío del producto: | 700 g/L (para cama mixta Amberlite ™ IRN160 H/OH) |
Descripción de producto

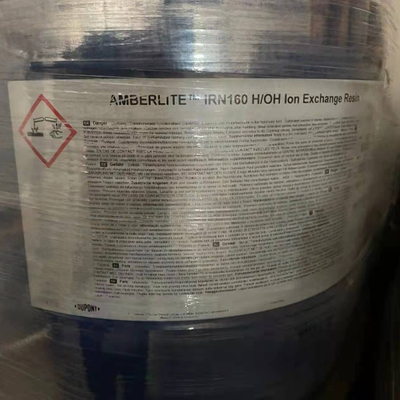

DuPont™ AmberLite™ IRN160 H/OH
1. Product Overview
AmberLite™ IRN160 H/OH is a nuclear-grade, uniform particle size mixed bed ion exchange resin specifically designed for water treatment applications in the nuclear power industry. It is a stoichiometric 1:1 equivalent mixture of AmberLite™ IRN97 H (cation) and AmberLite™ IRN78 OH (anion) resins, optimized to minimize separation during installation and transfer due to the smaller cation resin particle size. This resin ensures highest purity and stability, reducing ionic and non-ionic contamination, enabling reliable and safe production while minimizing equipment maintenance and unscheduled outages.
Key Features:
-
Minimal separation during installation/transfer
-
Faster kinetics and higher exchange capacity
-
Excellent chemical stability and resistance to bead fracture
-
Reduced radioactive waste generation
Key Applications:
-
Primary water treatment: Primary coolant blowdown, pre-outage cleanup
-
Fuel pool purification
-
Rad waste treatment and decontamination: Removal of radioactive cations (e.g., , cobalt isotopes), anionic radioactive material, and silver
-
PWR steam generation blowdown (APG)
-
BWR condensate polishing
Historical Reference:
Previously sold as AmberLite™ IRN160 Ion Exchange Resin.
2. Typical Properties
Physical and Chemical Properties:
| Property | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Copolymer | Styrene-divinylbenzene | Styrene-divinylbenzene |
| Matrix | Gel | Gel |
| Type | Strong acid cation | Strong base anion |
| Functional Group | Sulfonic acid | Trimethylammonium |

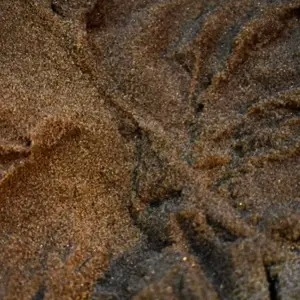

| Physical Form | Amber translucent spherical beads | Amber translucent spherical beads |
| Ionic Form as Shipped | H⁺ | OH⁻ |
| Total Exchange Capacity | ≥ 2.10 eq/L (H⁺ form) | ≥ 1.20 eq/L (OH⁻ form) |
| Water Retention Capacity | 45.0 – 51.0% (H⁺ form) | 54.0 – 60.0% (OH⁻ form) |
| Ionic Conversion (H⁺) | ≥ 99% | — |
| Ionic Conversion (OH⁻) | — | ≥ 95% |
| Ionic Conversion (CO₃²⁻) | — | ≤ 5% |
| Ionic Conversion (Cl⁻) | — | ≤ 0.05% |
| Ionic Conversion (SO₄²⁻) | — | ≤ 0.1% |
Particle Size Distribution:
| Parameter | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Particle Diameter | 525 ± 50 μm | 630 ± 50 μm |
| Uniformity Coefficient | ≤ 1.20 | ≤ 1.10 |
| < 300 μm | ≤ 0.2% | ≤ 0.2% |
| < 425 μm | — | ≤ 0.5% |
| > 850 μm | ≤ 5.0% | — |
| > 1180 μm | — | ≤ 2.0% |
ℹ For additional particle size information, refer to Document No.: 45-D00954-en.
Purity (Metals, Dry Basis):
| Element | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Na | ≤ 40 mg/kg | ≤ 20 mg/kg |
| K | ≤ 20 mg/kg | ≤ 20 mg/kg |
| Fe | ≤ 20 mg/kg | ≤ 20 mg/kg |
| Cu | ≤ 5 mg/kg | ≤ 5 mg/kg |
| Co | ≤ 5 mg/kg | ≤ 5 mg/kg |
| Ca | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Mg | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Al | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Hg | ≤ 20 mg/kg | ≤ 20 mg/kg |
| Heavy Metals (as Pb) | ≤ 10 mg/kg | ≤ 10 mg/kg |
| Cl | — | ≤ 250 mg/kg |
| SiO₂ | — | ≤ 10 mg/kg |
Mechanical Stability:
| Parameter | IRN97 H Cation Resin | IRN78 OH Anion Resin |
|---|---|---|
| Whole Uncracked Beads | ≥ 95% | ≥ 95% |
| Friability (Average) | ≥ 400 g/bead | ≥ 600 g/bead |
| > 200 g/bead | ≥ 95% | ≥ 95% |
| Solubility in Water | ≤ 0.10% | ≤ 0.10% |
Density:
-
Shipping Weight: 700 g/L (for mixed bed AmberLite™ IRN160 H/OH)
3. Operating Conditions
-
Temperature Range: 5 – 100°C (41 – 212°F)
-
pH Range (Stable): 0 – 14
⚠ Operation at elevated temperatures (e.g., >60–70°C) may impact system purity and resin life. Consult DuPont technical representatives for details.
4. Hydraulic Characteristics
-
Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is provided in Figure 1 (refer to original document for detailed curves).
5. Product Stewardship and Safety
-
WARNING: Strong oxidizing agents (e.g., nitric acid) may attack the resin under certain conditions, leading to degradation or violent reactions. Consult professionals before use.
-
Users should review manufacturing processes and applications from health, safety, and environmental perspectives.
-
Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
Users should review manufacturing processes and applications from health, safety, and environmental perspectives. Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
