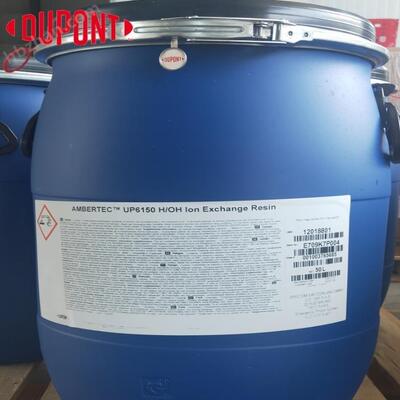

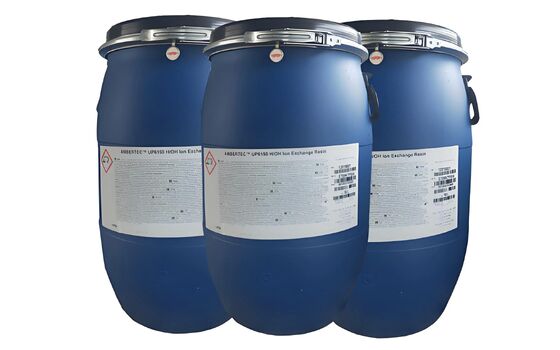

DuPont™ AmberTec™ UP6150 H/OH Mixed Bed Ion Exchange Resin – 18 MΩ·cm Ultrapure Water Polishing
Product Overview
DuPont™ AmberTec™ UP6150 H/OH is a fully regenerated, separable, uniform particle size mixed bed ion exchange resin specifically designed for final polishing in ultrapure water (UPW) systems. In properly designed systems, it delivers 18 MΩ·cm resistivity water with total organic carbon (TOC) levels well below 5 ppb on its first operating cycle. This resin is ideal for low-end semiconductor, display panel, solar photovoltaic cell manufacturing, and other high-purity water applications requiring exceptional ionic and organic cleanliness.
Applications
- Final polishing mixed bed deionization in ultrapure water (UPW) systems
- Low-end semiconductor manufacturing
- Display panel production
- Solar photovoltaic (PV) cell industry
- High-purity water polishing after reverse osmosis (RO) and electrodeionization (EDI)
Compatible System Designs
- Mixed bed polishers (separate or layered bed)
- Packed bed mixed bed systems
- Refillable cartridges for portable exchange deionization (PDI / IX)
- High-purity water polishing loops
Typical Properties
Physical and Chemical Properties:
| Property |
Cation Resin |
Anion Resin |
| Copolymer |
Styrene-divinylbenzene |
Styrene-divinylbenzene |
| Matrix |
Gel |
Gel |
| Type |
Strong acid cation |
Strong base anion, Type I |
| Functional Group |
Sulfonic acid |
Trimethylammonium |
| Physical Form |
Dark amber translucent spherical beads |
Yellow translucent spherical beads |
| Ionic Form as Shipped |
H⁺ |
OH⁻ |
| Total Exchange Capacity |
≥ 1.80 eq/L |
≥ 1.00 eq/L |
| Water Retention Capacity |
49 - 55% |
60 - 66% |
| Ionic Conversion (H⁺) |
≥ 99% |
-- |
| Ionic Conversion (OH⁻) |
-- |
≥ 95.0% |
| Ionic Conversion (CO₂⁻) |
-- |
≤ 5.0% |
| Ionic Conversion (Cl⁻) |
-- |
≤ 0.5% |
Particle Size Distribution:
| Parameter |
Cation Resin |
Anion Resin |
| Particle Diameter |
630 ± 50 μm |
730 ± 50 μm |
| Uniformity Coefficient |
≤ 1.25 |
≤ 1.25 |
| < 300 μm |
≤ 0.1% |
≤ 0.3% |
| > 850 μm |
≤ 10.0% |
≤ 10.0% |
For additional particle size information, refer to Document No.: 45-D00954-en.
Performance and Operating Conditions
Ultrapure Water Quality Test Results:
- Resistivity (UPW Rinse, 10-min): ≥ 18 MΩ·cm
- Resistivity (Salt Challenge, 10-min): ≥ 18 MΩ·cm
- Δ TOC (2h00 Rinse): ≤ 10 ppb C
Recommended Operating Conditions:
- Temperature Range: 15 - 25°C (59 - 77°F)
- pH Range (Stable): 0 - 14
- Shipping Weight: 730 g/L
Operation at elevated temperatures (e.g., >60-70°C) may impact system purity and resin life. Consult DuPont technical representatives for details.
Hydraulic Characteristics
- Pressure Drop: Estimated pressure drop as a function of service flow rate and water temperature is provided in Figure 1 (refer to original document for detailed curves).
- Rinse Performance: Typical resistivity and TOC rinse curves as a function of rinse time are shown in Figure 2.
Safety and Regulatory Notes
WARNING: Strong oxidizing agents (e.g., nitric acid) may attack the resin under certain conditions, leading to degradation or violent reactions. Consult professionals before use.
Users are encouraged to review manufacturing processes and applications from health, safety, and environmental perspectives.
Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
