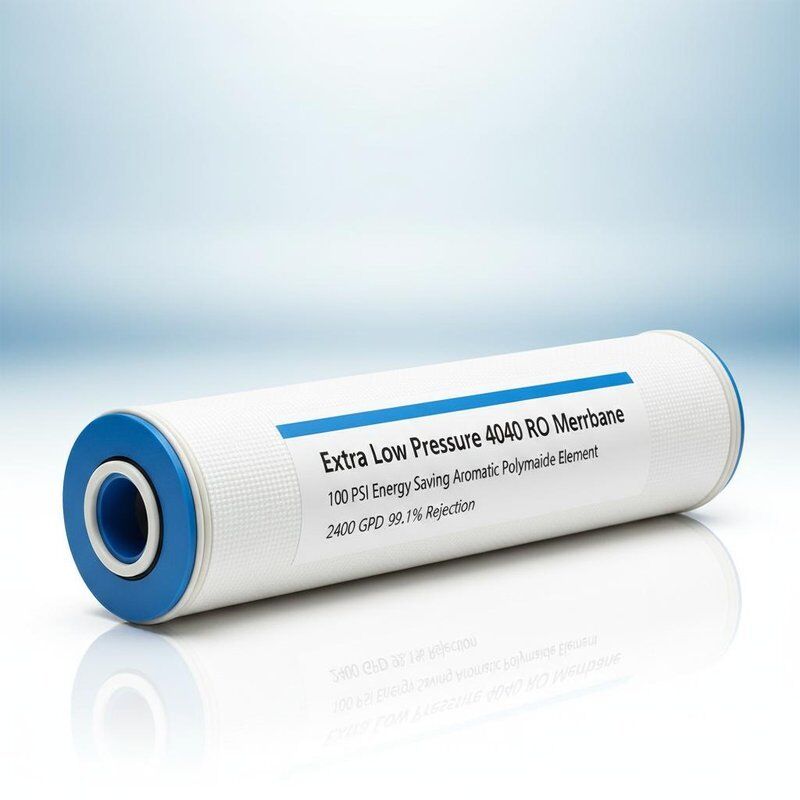

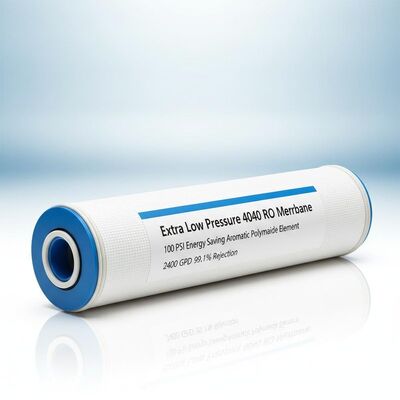

Extra Low Pressure 4040 RO Membrane with 2400 GPD Output and Aromatic Polyamide TFC Technology
Datos del producto:
| Lugar de origen: | Cantón, China |
| Nombre de la marca: | FILTERPRO |
| Certificación: | ISO 9001:2015 |
| Número de modelo: | FP-4040-XLP |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | USD 65-120 / Piece |
| Detalles de empaquetado: | Envasado al vacío en caja individual con solución conservante. |
| Tiempo de entrega: | 3-5 días laborables para stock, 10-15 días para producción |
| Condiciones de pago: | T/T, L/C, PayPal, Western Union |
| Capacidad de la fuente: | 10000 piezas por mes |
|
Información detallada |
|||
| Tamaño del elemento de membrana: | 4040 (4 pulgadas x 40 pulgadas) | Área de membrana activa: | 85 pies² (7,9 m²) |
|---|---|---|---|
| Tasa de flujo de penetración: | 2400 GPD (9,1 m³/día) | Tasa de rechazo de sal estable: | 99,1% |
| Presión de funcionamiento: | Las demás partidas de la caja | Material de la membrana: | Poliamida Aromática TFC |
| Tipo de membrana: | Presión extrabaja (XLP) | Td de agua de alimentación: | ≤ 1500 ppm |
| Rango de pH: | 2-11 | ||
| Resaltar: | Extra Low Pressure RO,100 PSI Energy Saving,2400 GPD Aromatic Polyamide |
||
Descripción de producto
Extra Low Pressure 4040 RO Membrane 100 PSI Energy Saving Aromatic Polyamide Element 2400 GPD 99.1% Rejection
Extra Low Pressure 4040 RO Membrane - Energy Saving Brackish Water Element
The FP-4040-XLP is a cutting-edge extra low pressure reverse osmosis membrane element designed for maximum energy efficiency. Operating at just 100 PSI (6.9 bar) — significantly lower than standard 150-225 PSI membranes — this 4040 element achieves a 30-50% reduction in pump energy consumption while delivering 2400 GPD of high-quality permeate water.
Key Features
- Ultra-Low Operating Pressure: Rated at only 100 PSI, this XLP membrane dramatically reduces electricity costs in continuous operation, making it the most economical choice for brackish water treatment systems running 24/7.
- Aromatic Polyamide TFC Technology: Advanced thin-film composite membrane with aromatic polyamide active layer provides superior salt rejection (99.1%) at low pressure while maintaining excellent chlorine tolerance.
- 2400 GPD High Output: Despite the low pressure operation, achieves an industry-leading 2400 GPD permeate flow rate, comparable to standard 150 PSI membranes in the same 4040 form factor.
- Standard 4040 Format: Compatible with all standard 4-inch membrane pressure vessels, enabling seamless retrofit into existing RO systems without hardware modification.
- Extended Membrane Life: Low pressure operation reduces mechanical stress on the membrane surface, minimizing compaction and extending service life beyond conventional membranes.
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Element Size | 4040 (4" x 40") |
| Active Membrane Area | 85 ft² (7.9 m²) |
| Permeate Flow Rate | 2,400 GPD (9.1 m³/day) |
| Stable Salt Rejection | 99.1% |
| Operating Pressure | 100 PSI (6.9 bar) |
| Max Operating Pressure | 300 PSI (20.7 bar) |
| Membrane Material | Aromatic Polyamide TFC |
| Feed Water TDS | ≤ 1,500 ppm |
| pH Range (Continuous) | 2-11 |
| Max Feed Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Applications
Perfect for small to medium commercial and industrial RO systems where energy costs are a primary concern: hotel and resort water purification, bottled water production, food and beverage processing, pharmaceutical water pretreatment, and community-scale drinking water systems.
Energy Savings Calculation
Compared to a standard 150 PSI membrane, the FP-4040-XLP saves approximately 33% on pump energy. For a system running 8,760 hours per year with a 1.5 kW pump, this translates to an annual electricity saving of over 4,300 kWh — approximately USD 500-650 per year at typical industrial electricity rates.
